Hazardous Areas – Fuel Nozzle

The graphics showing the zones around the nozzle when refuelling vehicles have been improved to give a
better representation of the requirements. The classification for the nozzle without stage 2 vapour recovery has
been increased so that the entire area is now zone 1, previously only the bottom 250mm was zone 1.

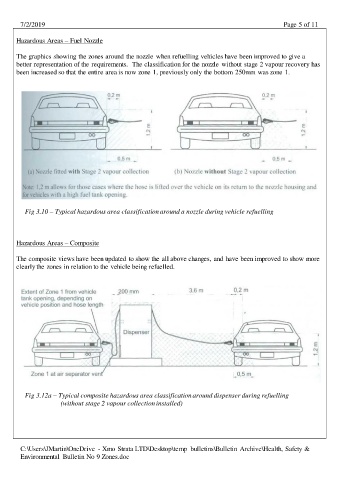

Fig 3.10 – Typical hazardous area classification around a nozzle during vehicle refuelling

Hazardous Areas – Composite

The composite views have been updated to show the all above changes, and have been improved to show more
clearly the zones in relation to the vehicle being refuelled.

Fig 3.12a – Typical composite hazardous area classification around dispenser during refuelling
(without stage 2 vapour collection installed)
