Hazardous Areas – Vent Pipes

The new zones around vent pipes are shown below.

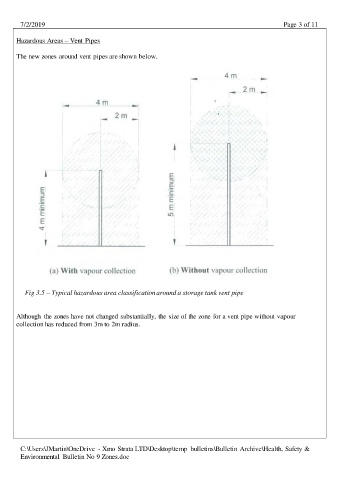

Fig 3.5 – Typical hazardous area classification around a storage tank vent pipe

Although the zones have not changed substantially, the size of the zone for a vent pipe without vapour
collection has reduced from 3m to 2m radius.
