Hazardous Areas – Fuel Dispenser

The hazardous areas around a dispenser have not changed, but a downgrade of the zone around the pump
nozzle from zone 0 to zone 1 is clarified with a new figure as shown below.

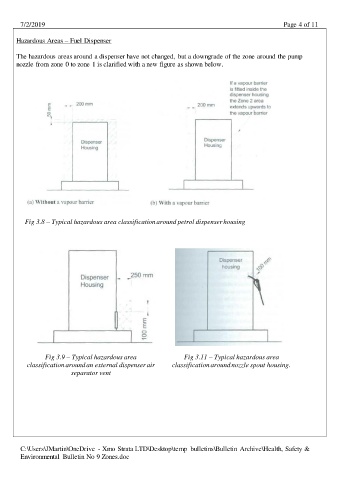

Fig 3.8 – Typical hazardous area classification around petrol dispenser housing

Fig 3.9 – Typical hazardous area Fig 3.11 – Typical hazardous area
classification around an external dispenser air classification around nozzle spout housing.
separator vent
